Industrial -grade 4G router wireless full Netcom manufacturer 4G wireless router signal stable VPN optional
Default Title
Tk 2,553.84
Product Specifications
Packaging & Shipping
Product Overview

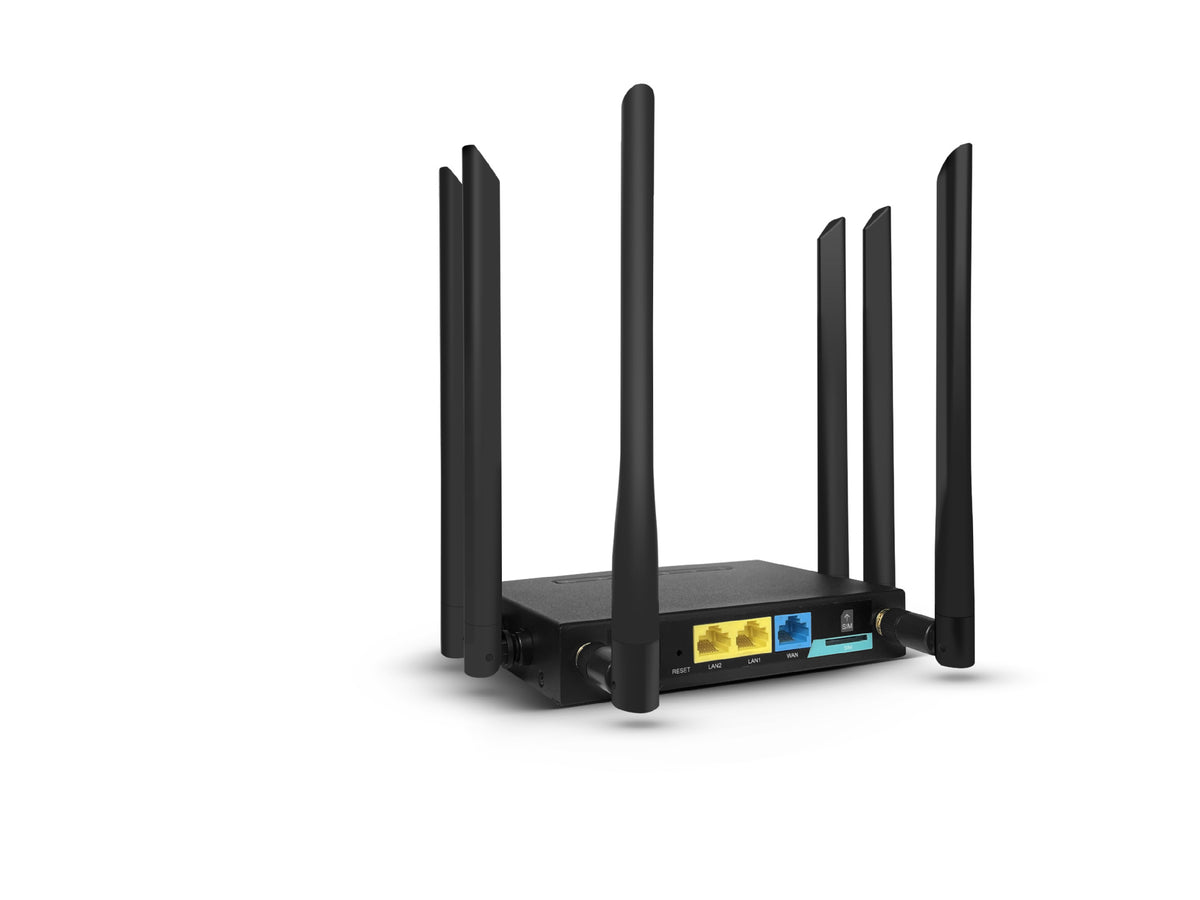

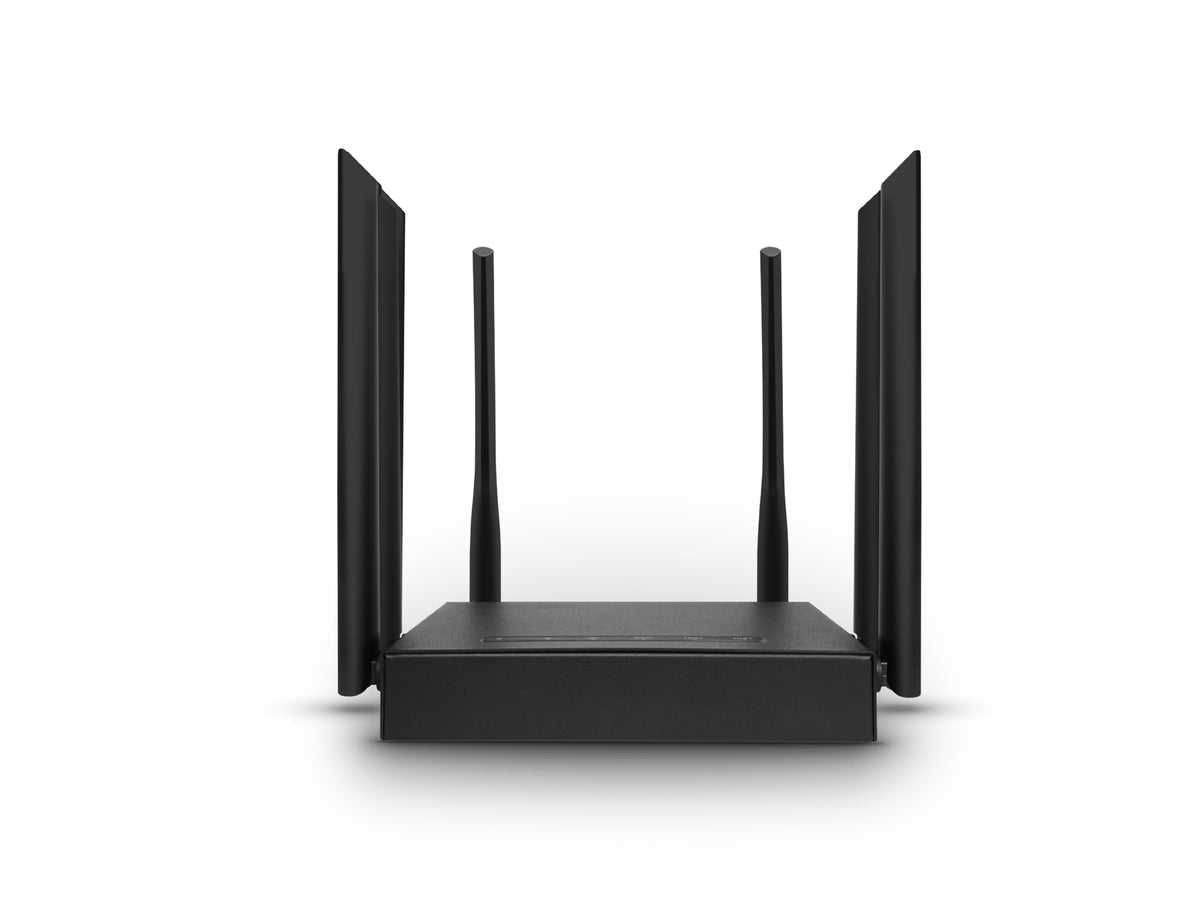

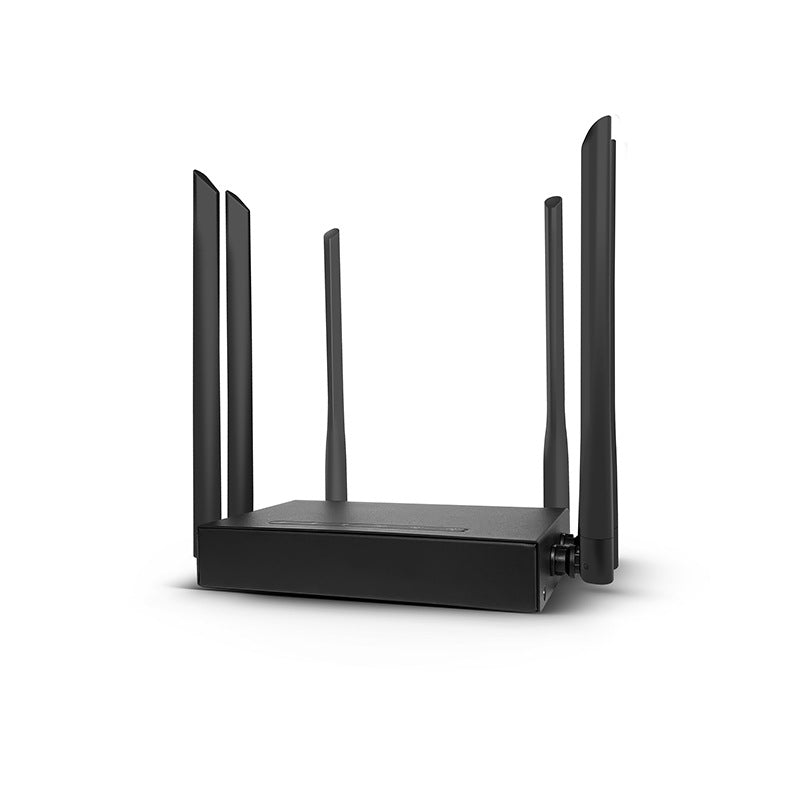

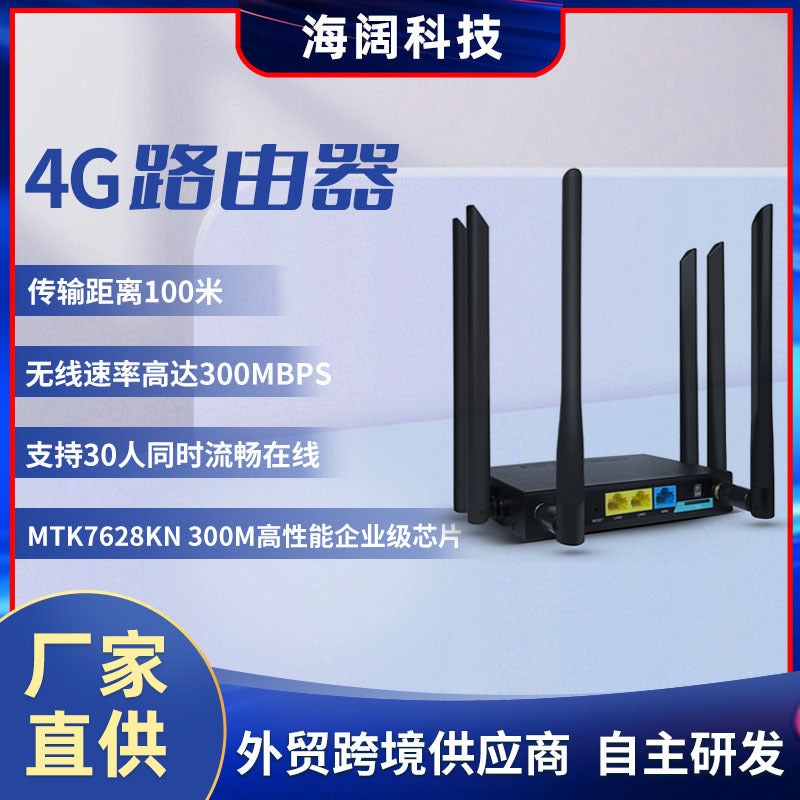

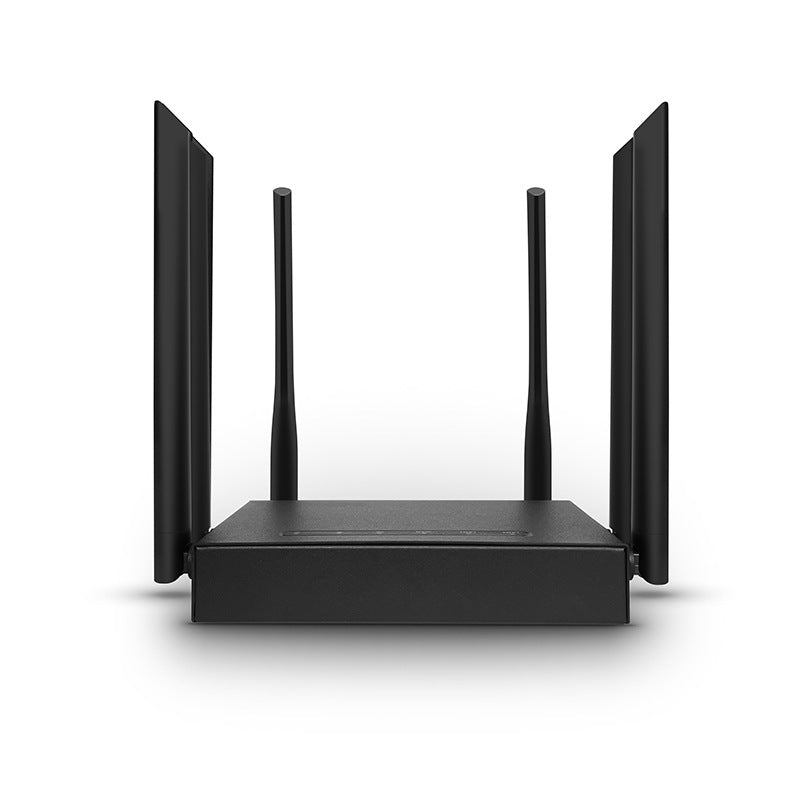

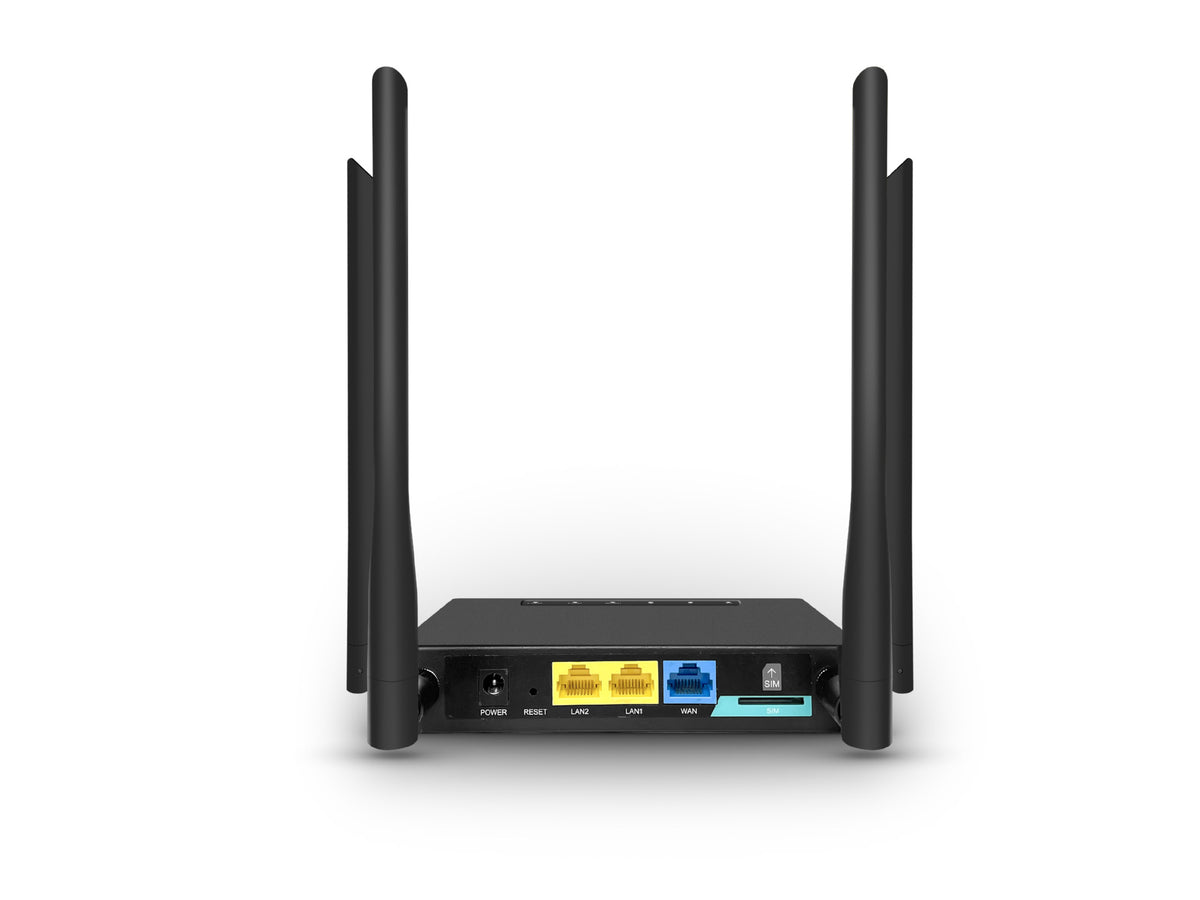

WR170N+ 300M Industrial -grade 4G router
It is a wireless communication product developed based on the needs of 4G network. The WiFi wireless rate is up to 300Mbps, which can meet the needs of stable, safe and simple Internet access in small networks such as offices and homes. It can also be used in the Internet of Things communication industry to provide users with wireless long-distance data monitoring, collection and transmission functions.Full Netcom 4G network access, fully compatible with 4G/3G/2G networks, equipped with 2 10/100M adaptive Ethernet LAN interfaces to connect to the internal LAN; 1 10/100M adaptive Ethernet WAN interface to provide wired broadband access.
industrial design,300Mwireless
Using a professional wireless processor, the wireless rate is up to 300Mpbs, the barrier-free transmission distance is about 100 meters, and it has independent professional power amplifiers and low-noise amplifiers. It can operate 30 machines stably and smoothly without lagging or dropping.
Easy to set up, flexible and versatile
Supports 4G mode, routing mode, and AP mode, and has a built-in quick setup wizard to guide customers to complete configuration easily.The default 4G access mode is plug-in and ready to use; the routing mode supports wired broadband access; the AP mode easily converts a wired network into a wireless WiFi network.It supports both 4G and wired broadband access methods, and supports China Mobile, China Unicom and Telecom's 4G/3G/2G Internet cards. It has the advantage of 4G Internet access in places where wired bandwidth cannot reach. It automatically switches between 4G and wired and is never disconnected.
A variety of security strategies, always guarantee network data security
Support WPS, WPA, WPA2 wireless security access, support SSID hiding and wireless blacklists to effectively prevent the network, and always ensure user network data security.
A variety of statistics, always know the work status of the equipment
Built -in traffic statistics, support traffic package settings, and easily understand the use of monthly traffic; multi -state work indicators, real -time work log views, and always understand the work status of the equipment.
Never-ending product feature updates and performance optimization
The R&D team adhering to the spirit of craftsman has been constantly updating functions to simply and efficiently meet the needs of various network environments; meticulous performance optimization ensures the provision of the highest quality network products and enhances user experience.
Product technical specifications
Product parameters | |
Hardware Configuration |
|
main chip |
MTK7628KN 300M high-performance enterprise-level chip |
host frequency |
580MHz |
wireless technology |
802.11b/g/n 300m mimo technology |
flash live |
2MB |
Inside live |
8MB |
Device interface |

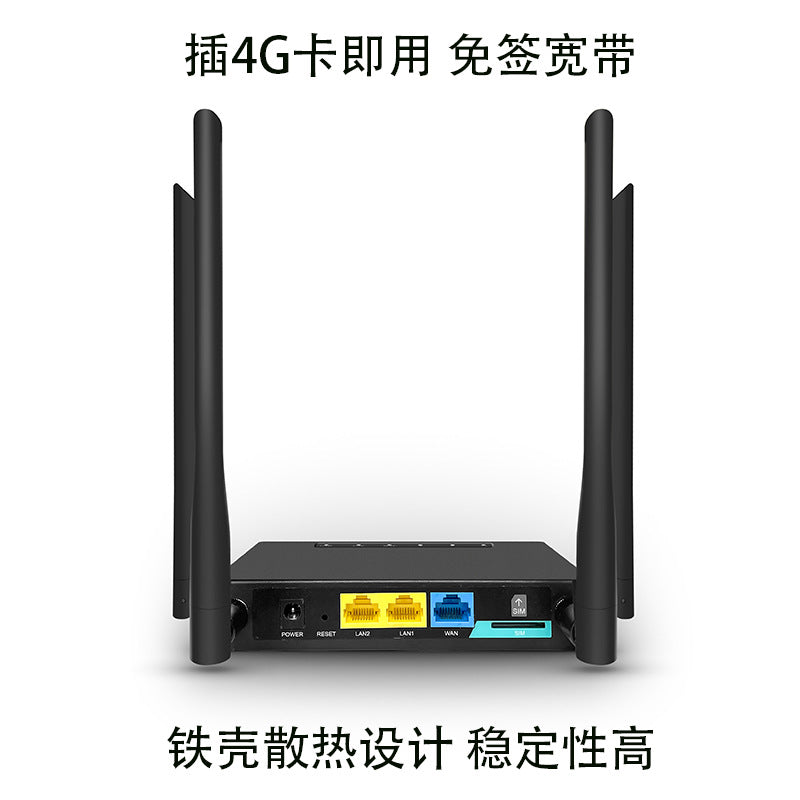

WAN 10/100Mbps Adaptive network interface*1 LAN 10/100Mbps Adaptive network interface*2 SIM card, big card |
sky Wire |

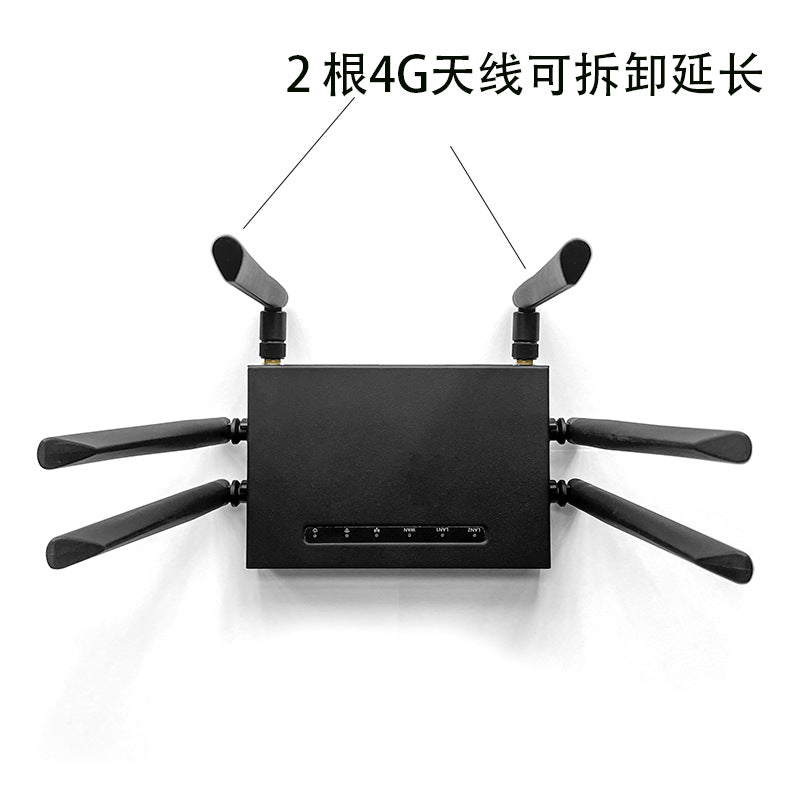

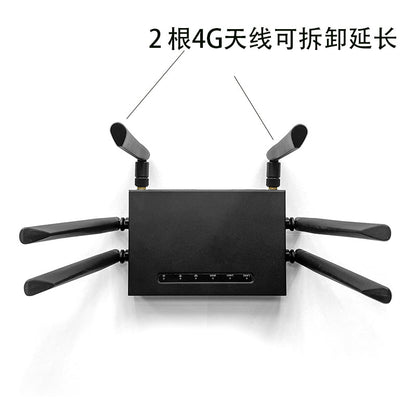

5DBI buckle glue stick antenna 4G 2T2R 5dBi snap-on glue stick antenna*2 (antenna is detachable) WIFI 2T2R 2.4G 5DBI buckle glue stick antenna*2 |
achievement Consume |
<10W |
press key |
1 Reset reset button, long press for 3 seconds to restore the factory settings |
Indicator lamp |
6 groups: POWER, WIFI, 4G, WAN, LAN1, LAN2 |
Dimensions/weight |
N/A,N/A |
WiFicharacteristic |
|
RF parameters |
802.11b/g/n:2.4~2.4835GHz |
Modulation |
11B: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, dbpsk@1Mbps 11g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, qpsk@12/18Mbps, BPSK@6/9Mbps 11N: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM |
Transmission rate |
11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: Up to 300Mbps |
Receiving sensitivity |
11b:<-84 Big Bo Sister @11Mbps; 11g:<-69 Big Bo Mei @ 54Mbps; 11n: HT20 |
Launch power |
11b: 18dBm@ 1~11Mbps 11g: 16dBm @ 6~54Mbps 11n: 15dBm@ MCS0~7 |
|
Communication standard |
IEEE 802.3(Ethernet) IEEE 802.3u(Fast Ethernet) IEEE 802.11b/g/n(2.4G WLAN) |
Wireless safety |
WPA/WPA2 Security Mechanism (WPA-PSK use TKIP or AES) |
4Gcharacteristic |
|
Network system/GNSS |
EC200T |
LTE-FDD (support grading receiving) |
B1/B3/B5/B8 |
LTE-TDD (support grading receiving) |
B38/B39/B40/B41 |
WCDMA |
B1/B8 |
TD-SCDMA |
B34/B39 |
CDMA |
BC0 |
GSM |
900MHz/1800MHz |
GNSS function |
GPS, GLONASS, BeiDou/Compass, Galileo, QZSS |
Launch power |
Class 4 (33dBm±2dB) for GSM900 Class 1 (30dBm±2dB) for DCS1800 Class E2 (27dBm±3dB) for GSM900 8-PSK Class E2 (26dBm±3dB) for DCS1800 8-PSK Class 3 (24dBm+2/-1dB) for CDMA BC0 Class 3 (24dBm+1/-3dB) for WCDMA bands Class 2 (24dBm+1/-3dB) for TD-SCDMA bands Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands |
LTE characteristics |
Maximum support 3GPP R8 non-CA Cat 4 FDD and TDD support 1.4MHz~20MHz Radio frequency bandwidth Downstream support MIMO LTE-FDD: maximum downlink rate 150Mbps, maximum uplink rate 50Mbps LTE-TDD: maximum downlink rate 130Mbps, maximum uplink rate 35Mbps |
UMTS characteristics |
support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA support QPSK, 16-QAM and 64-QAM modulation DC-HSDPA: maximum downlink rate 42Mbps HSUPA: maximum uplink rate 5.76Mbps WCDMA: Maximum downlink rate 384Kbps, maximum uplink rate 384Kbps |
TD-SCDMA characteristics |
support CCSA Release 3 TD-SCDMA Maximum downlink rate 4.2Mbps, maximum uplink rate 2.2Mbps |
CDMA characteristics |
support 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev.A EVDO: maximum downlink rate 3.1Mbps, maximum uplink rate 1.8Mbps 1 X A d va n c e d: Maximum downlink rate 307.2Kbps, maximum uplink speed 307.2Kbps |
Work/storage temperature |
-10 ℃ ～ 50 ℃/-40 ℃ ～ 70 ℃ |
Work/storage humidity |
5%～95% (non-condensing) |
Software characteristics |
|
Operating mode |
4G access, routing mode, AP mode |
Machine volume |
30 people |
Management method |
Chinese WEB remote management |
shape state |
System status, interface status, routing table |
Wireless configuration |
WiFi basic parameter configuration/blacklist |
Network settings |
Operating mode LAN port/WAN address setting |
Flow assistant |
Traffic statistics/package settings/traffic control |
department Unified |
System properties/password modification/backup upgrade/system log/restart |
Setup Wizard |
Quick configuration wizard |
Synthetic light flash rules |
|
POWER |
Connect to the power supply, the POWER light is always blue |
2.4G |
2.4G WiFi is turned on, and the 2.4G indicator light is always blue. |
4G |
In 4G network mode, and when the 4G network is normal, the 4G light is always blue; in 4G mode, when 4G is abnormal, the blue light flashes. |
WAN |
When there is data access, the WAN indicator light is always blue. |
LAN1/LAN2 |
When there is data access, the LAN1 and LAN2 indicators are always blue. |
