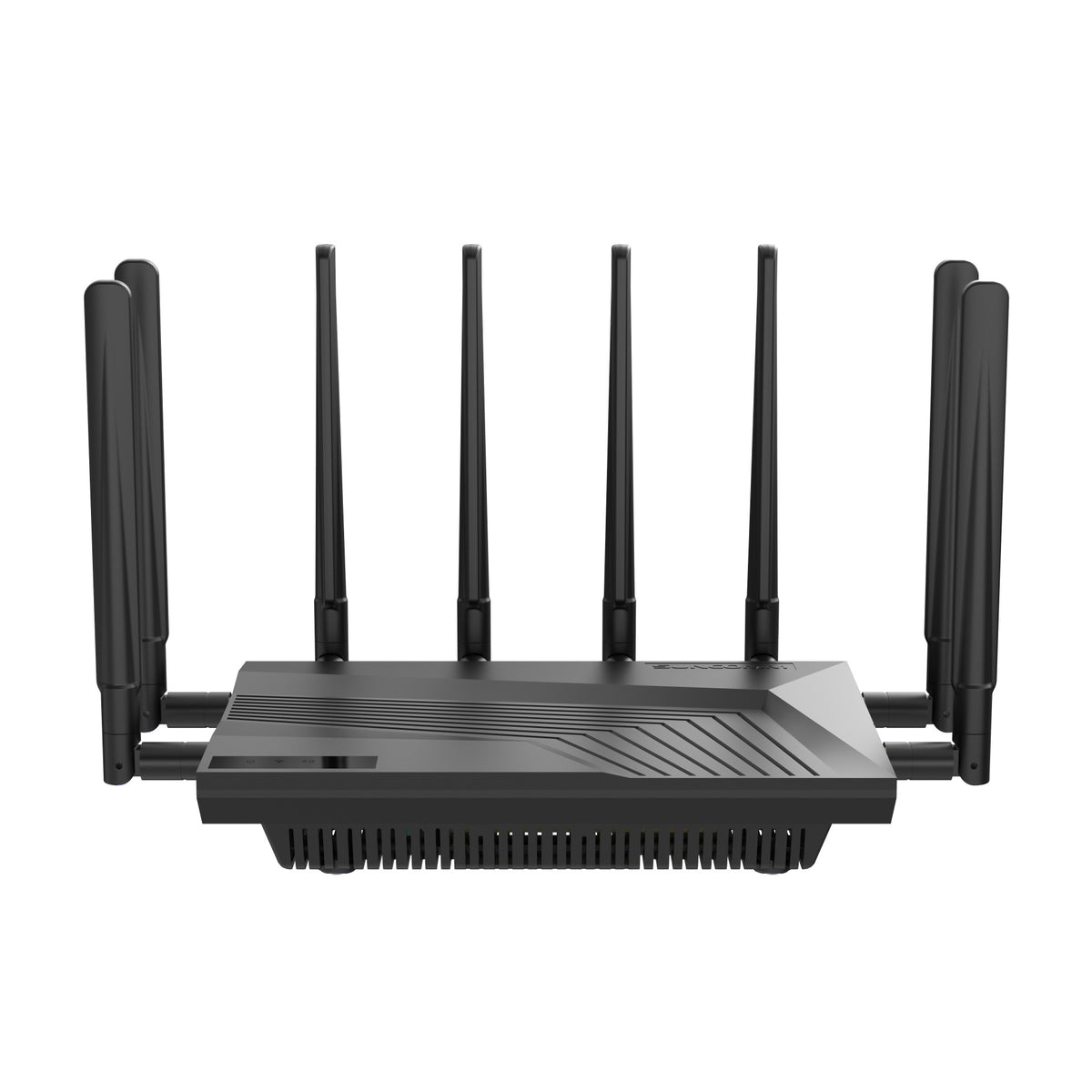

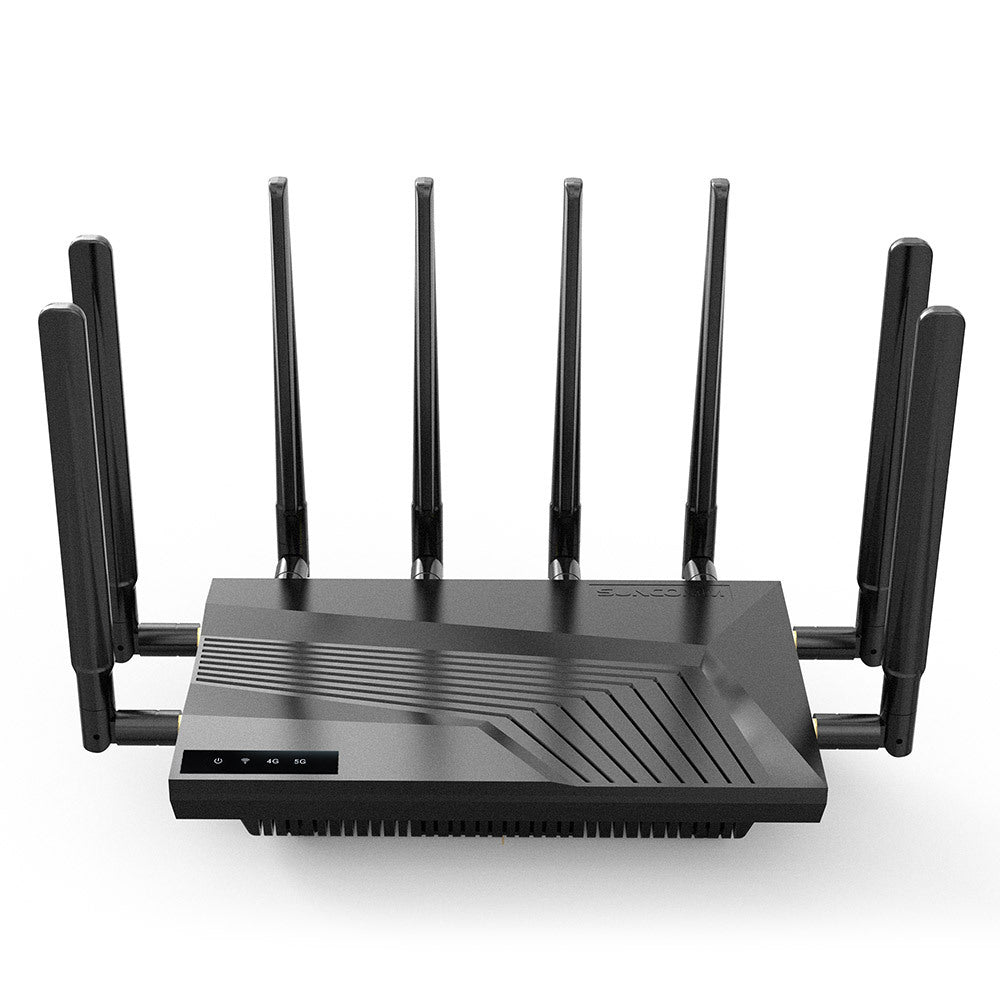

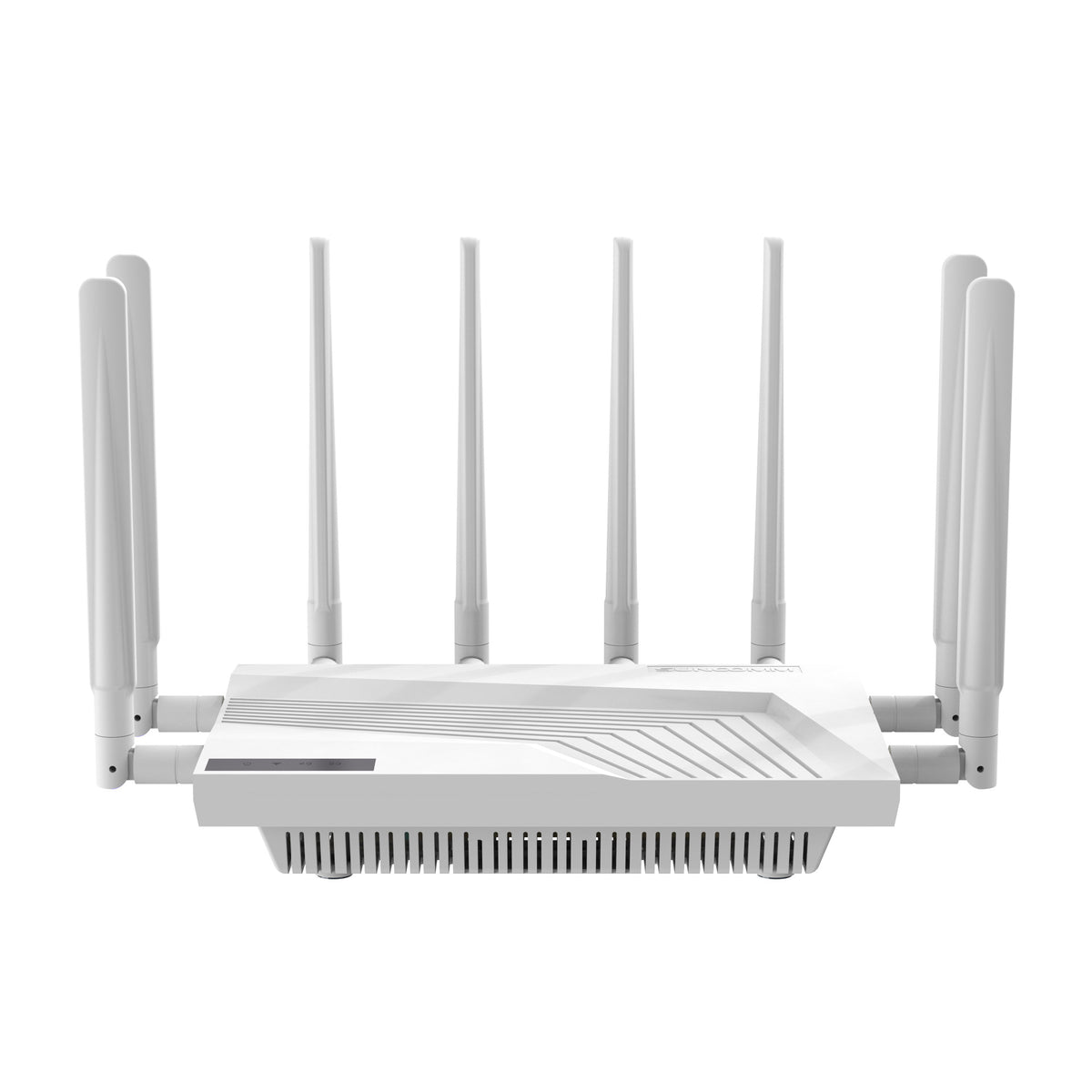

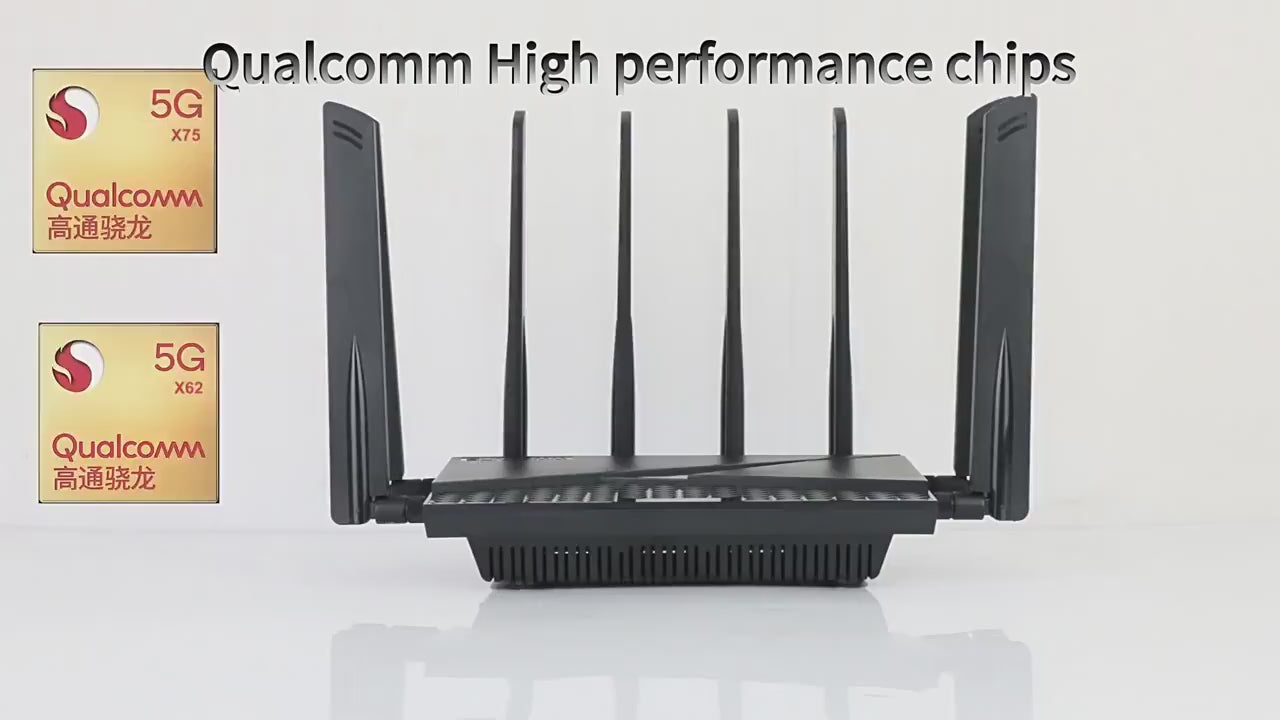

4cc carrier aggregation 5g Qualcomm x75 gaming router full Netcom plug-in card 2.5g port dual-band wifi6
White / se
Tk 28,017.00
Product Specifications
Packaging & Shipping
Product Overview
Technical Parameters

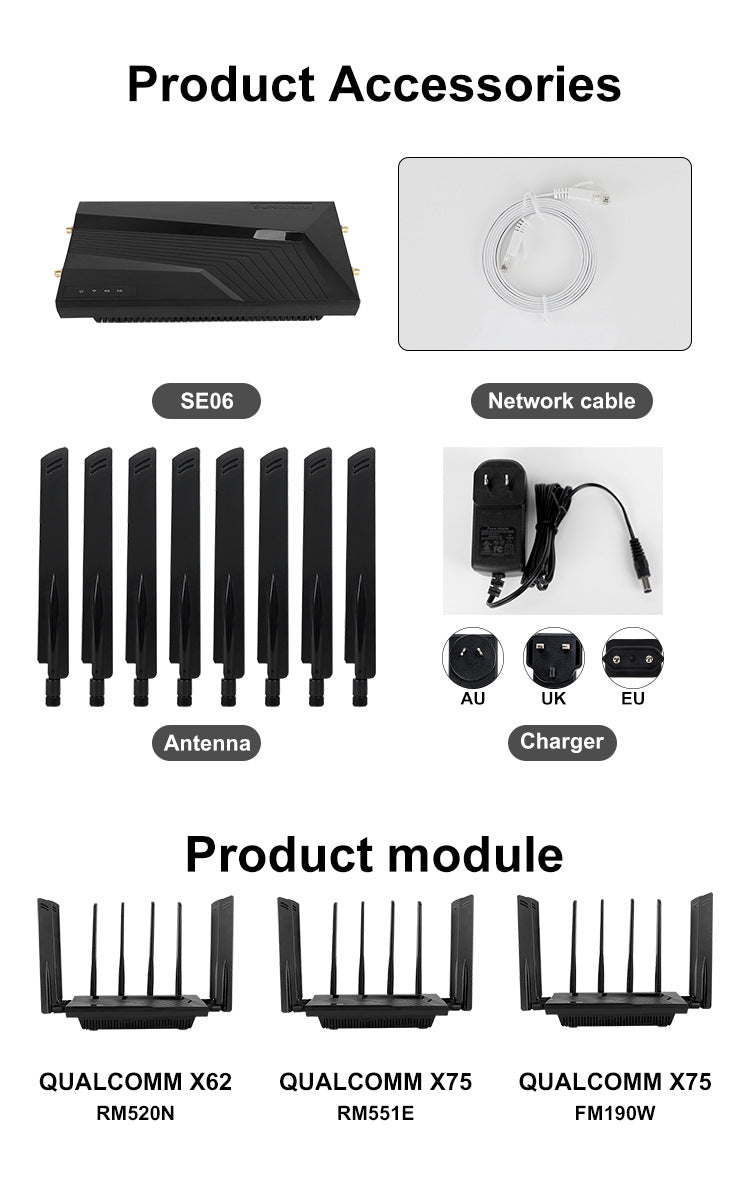

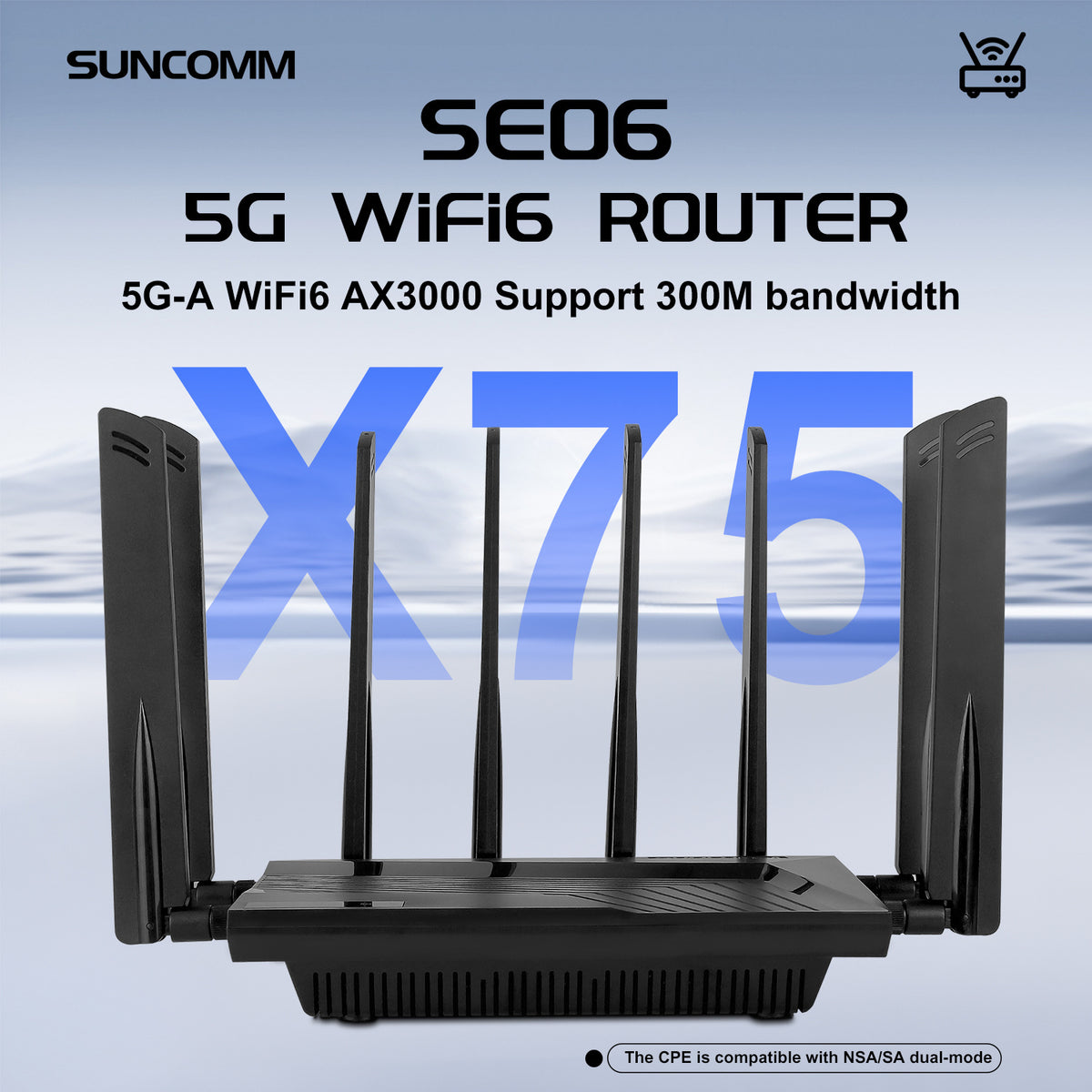

model:SE06
5g module:RM520N-GL
Ethernet:
1 * WAN/LAN 1Gbps
2 * LAN 1Gbps
2*Nano sim card slot
model:SE06 Pro
5g module:RM520N-GL
Ethernet:

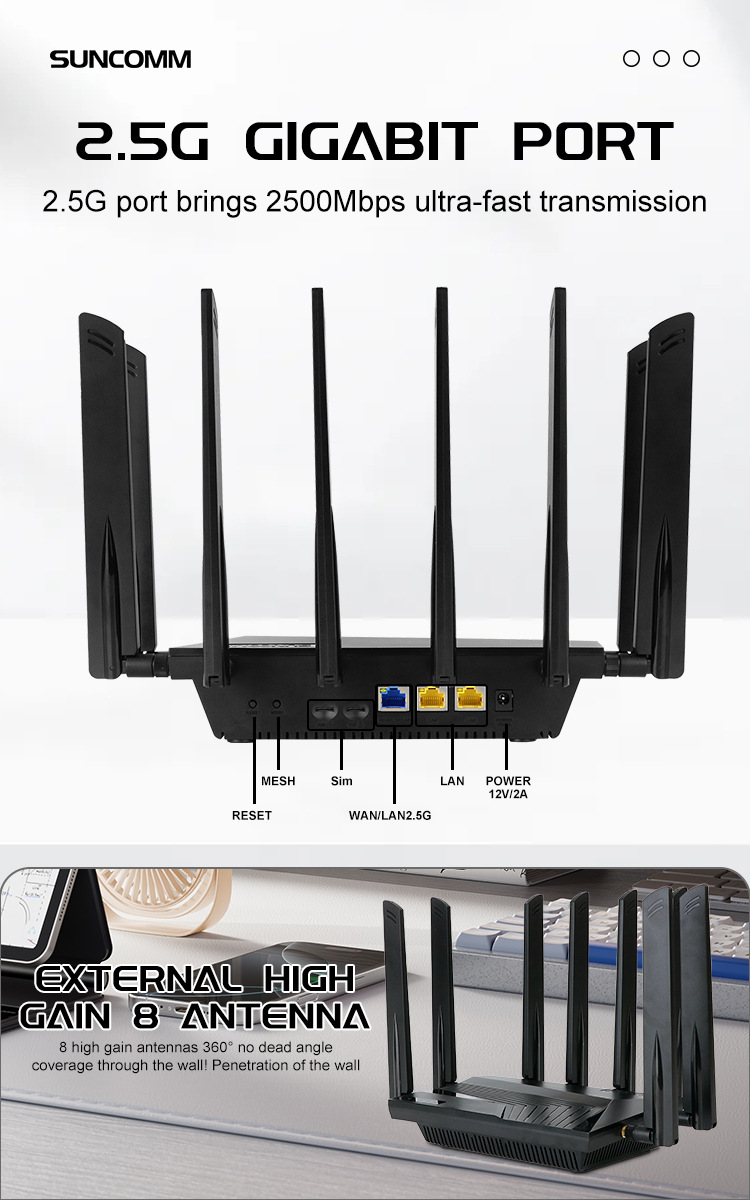

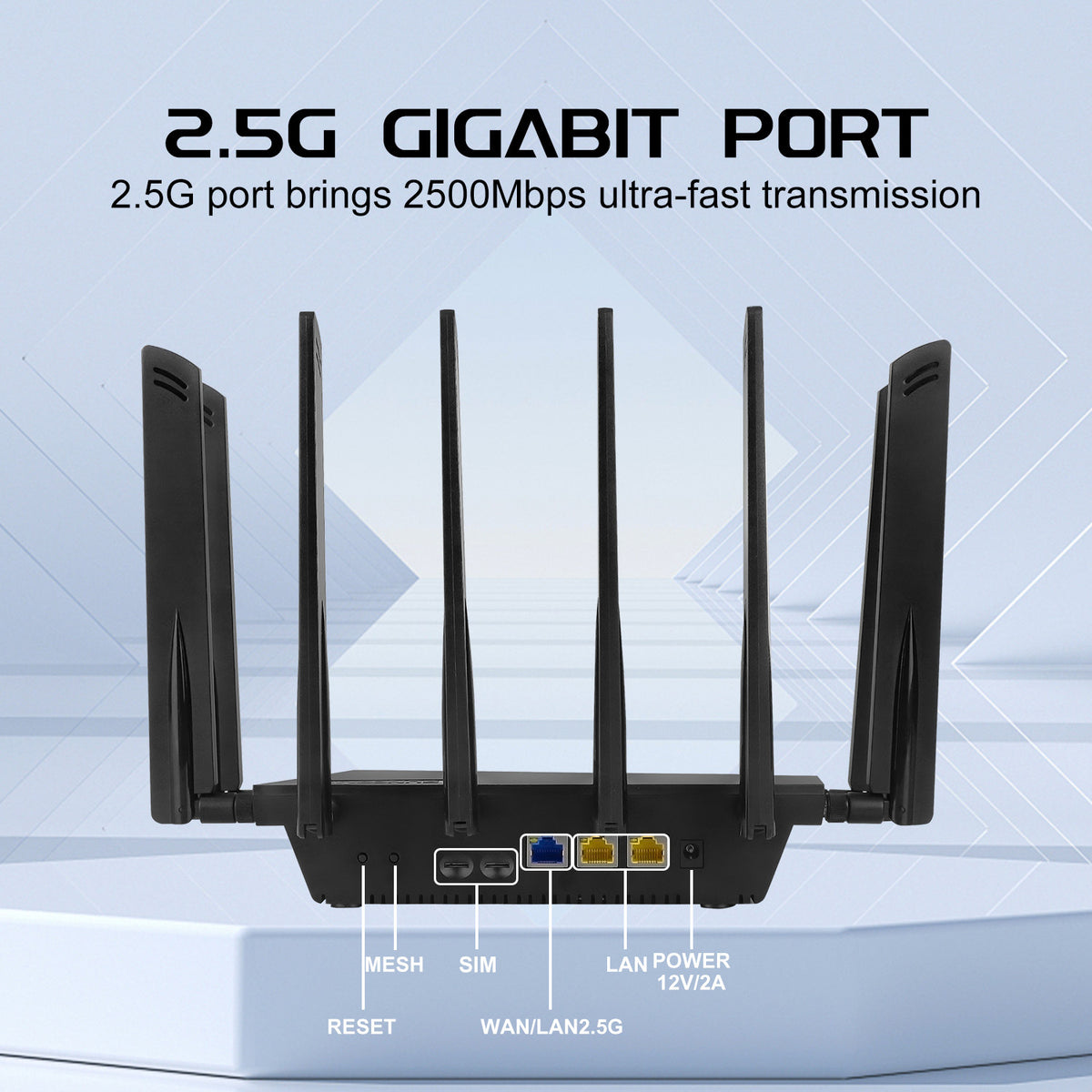

1 * WAN/LAN 2.5Gbps
2 * LAN 1Gbps
2*Nano sim card slot
5G NR (SE06 / SE06 Pro) :
NSA/SA: n1/N2/ N3/ N5/ N7/ N8/ N12/ N13/ N14/ N18/ N20/ N25/ N26/ N28/ N29/ N30/ N38/ N40/ N41/ N48/n66/N70/ N71/ N75/ N76/ N77/ N78/ N79
LTE-FDD: b1/B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B14/ B17/ B18/ B19/ B20/ B25/ B26/ B28/ B29/ B30/ B32/b66/B71
LTE-TDD: B34/ B38/ B39/ B40/ B41/ B42/ B43/ B48
LTE-LAA: B46
WCDMA: B1/ B2/ B4/ B5/ B8/ B19
Data rate (SE06 / SE06 Pro):
5G SA Sub-6:
DL 2.4 Gbps; UL 900 Mbps
5G NSA Sub-6:
DL 3.4 Gbps; UL 550 Mbps
LTE:
DL 1.6 Gbps; UL 200 Mbps
WCDMA:
DL 42 Mbps; UL 5.76 Mbps
model:SE06 Ultra
5g module: FM190W-GL / RM551E-GL
Ethernet:
1 * WAN/LAN 2.5Gbps
2 * LAN 1Gbps
2*Nano sim card slot
5G NR(SE06 Ultra):
5G Sub-6 NSA/SA:n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n77/n78/n79/n91/n92/n93/n94
5G mmW: n257/n258/n260/n261
LTE:b1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/b66/B70/B71/B34/B38/B39/B40/B41/B42/B43/B48/B46
WCDMA: B1/B2/B4/B5/B8/B19
3GPP Release 17 NSA/SA operation, Sub-6 GHz
Data rate (SE06 Ultra):
FR1 + FR2:
10Gbps(DL) / 3.38Gbps(UL)
NR SA:
6.18Gbps(DL) / 900Mbps(UL)
NR NSA:
4.92Gbps(DL) / 555Mbps(UL)
LTE:
2.0Gbps(DL) / 211Mbps(UL)
WCDMA:
42Mbps(DL) / 5.76Mbps(UL)
Performance parameters
CPU:

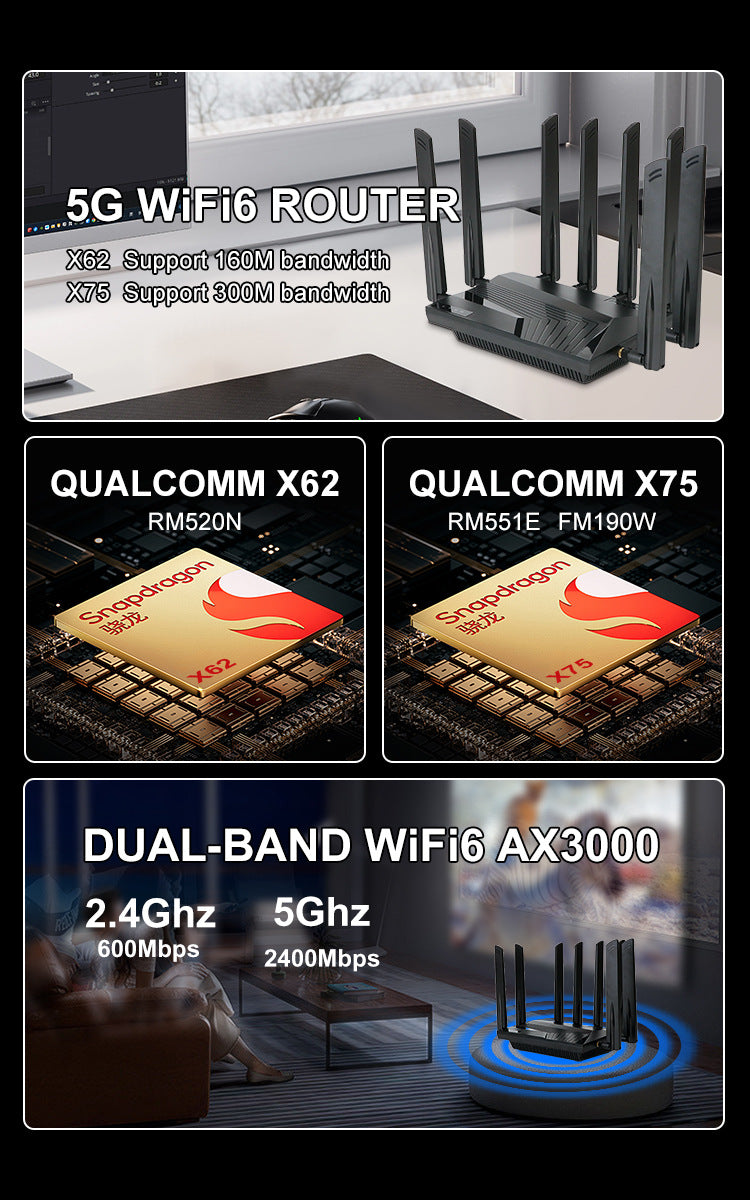

MT7981BA + MT7976CN + MT7531AE (Dual Core A53 1.3GHz)
WiFi 6:
2.4G/5G, 2.4GHz 2TR: 600Mbps, 5GHz 2T2R: 2402Mbps
storage:
512mb DDR3 + 128mb SPI NAND flash memory
WiFi standards:
IEEE 802.11b, g, a, n, ac, ax, IEEE 802.3, u, x
Operating mode:
Router/Bridge
Wireless security:
Wireless MAC address filtering
64/128-bit WEP encryption
Wpa-psk, WPA2-PSK, WPA3-SAE, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE WPS(PBC)
Other functions:
Wireless host status display
Wireless site scanning
Seamless roaming between nodes
Seamless roaming between bands
WiFi settings:
Basic WiFi settings (dual-band integration, switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth, power adjustment).
Advanced settings (Wireless client isolation, 802.11h, WMM multimedia acceleration).
Multiple ssids (ssid, encryption method, pwd and encryption algorithm)
Button:
Mesh (press for 1 second).
Reset (Press and hold for 5 seconds).
LED indicator:
5G, 4G, WIFI signal indicator, power indicator
power supply:
DC 12V/2A
Network settings:
Data switch, roaming switch, mode selection, default APN information and APN manual configuration
Failover switches: PPPOE, DHCP and static
4G/5g band lock
WiFi settings:
WiFi name and password, WiFi timing, channel bandwidth settings, power adjustment, bridging function, OFDMA, mesh
SMS function:
SMS sending and receiving, SMS center settings, USSD
Guest network:
Configure SSID, rate limits, and startup time limits for the guest network
Parental controls:
Online device display, online time, restricted Internet time period, URL filtering configuration
Advanced settings:

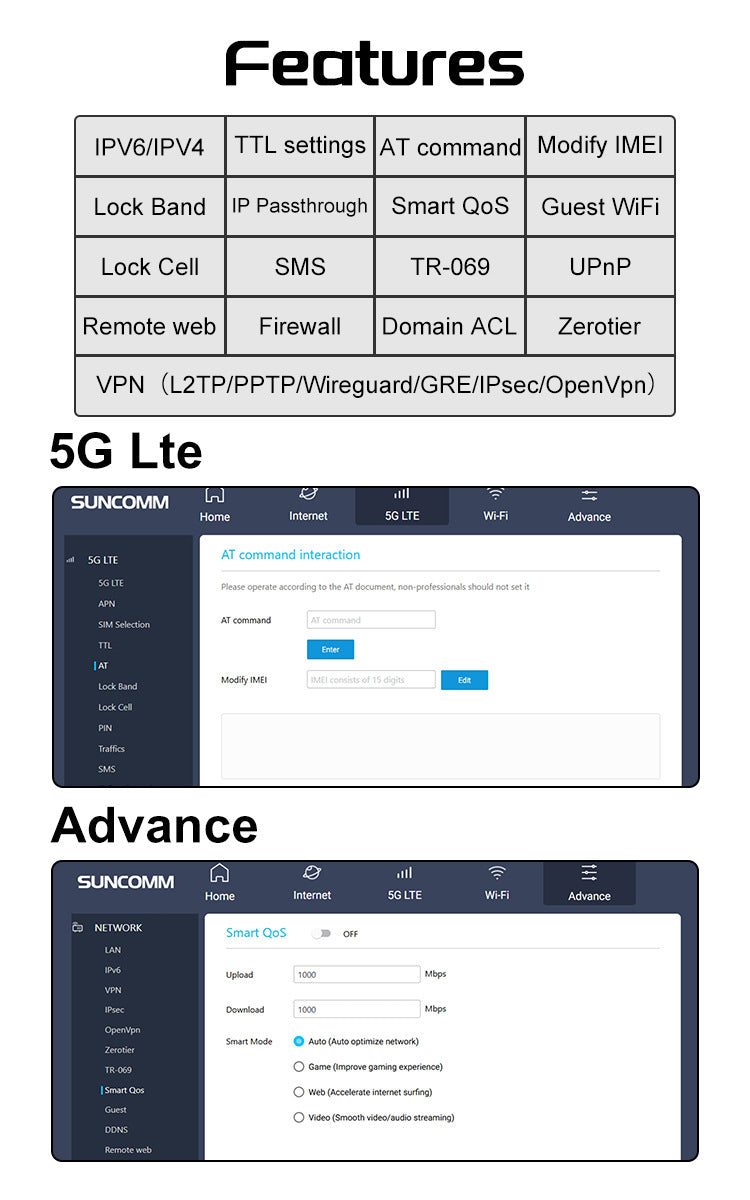

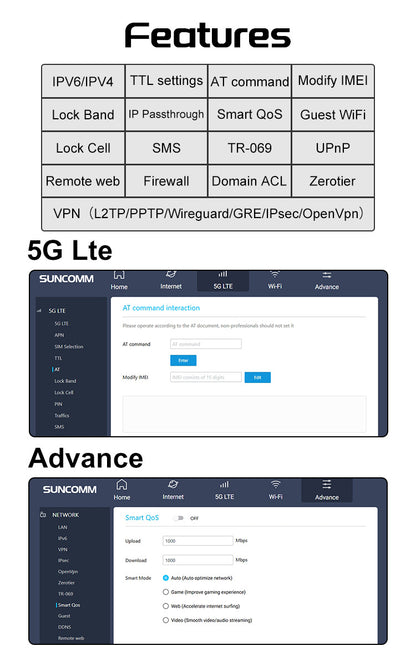

Working mode, SIM PIN, mobile data switch, bandwidth control, sleep mode, LED control, filtering MAC address, firewall, static routing, DDNS, virtual server, DMZ host, UPnP, TR069 settings, VPN (L2TP/PPTP/Wireguard/GRE/IPsec/OpenVpn), IMEI modification, Zerotier, smart QoS, firewall, domain ACL, UPnP, remote web
System settings:
System status, time settings, password management, configuration management, firmware upgrade, scheduled restart, system log, LAN settings, DHCP binding, restart and reset, remote management
Use environment:
Working temperature: -20°C to 50°C
Storage temperature: -40 ℃ to 70 ℃
Working humidity: 10% to 90% RH non-condensing
Storage humidity: 5% to 95% RH non-condensing
